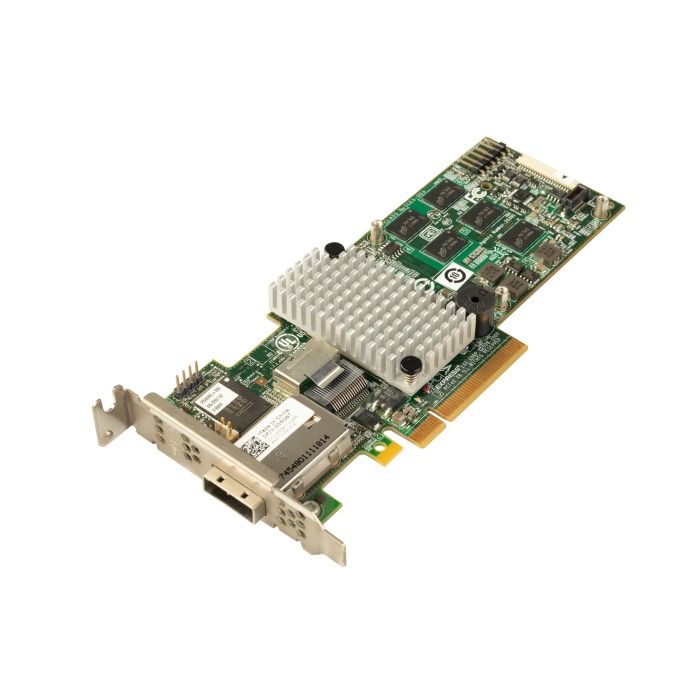

RAID Controller Dell Broadcom MegaRAID SAS 9280-4i4e 512MB Adapter PCIe 2.0x8 4x SFF-8088 6Gb SAS 55G6T
Manufacturer: Broadcom
PN: 55G6T
Model: 9280-4i4e
Loading...
Calculating delivery time...In stock: 1
Warranty: 12 months with the possibility of extension
Technical parameters:
- Card type - Adapter
- Cache size - 512MB
- Supported RAID levels - RAID-6, RAID-5, RAID-1, RAID-0
- Support for JBOD mode - Yes
- Controller connectors - 4x SFF-8088, 4x SFF-8087
- Supported disk interfaces - 6Gb SAS, 6Gb SATA
- Maximum number of drives - 240
- Chipset - LSI SAS 2108
- Number of SAS ports - 8
- Host bus - PCIe 2.0x8
- RAID protection - BBU
- Data transfer per port - 6Gb
- RAM type - DDR2
- RAM clock frequency - 800MHz
- Controller type - RAID controller
Before placing your order, make sure it is compatible with your hardware and the operating system you are using. Different versions of operating systems may support different controllers.
If you have any doubts, we are happy to advise and help you choose the right controller for your particular solution.
The posted photo is for illustrative purposes only and may not always accurately reflect the product offered.
Specifications
| Manufacturer | |
|---|---|
| Controller type | |
| Maximum number of drives | 240 |
| Supported RAID levels | |
| Support for JBOD mode | |
| Controller connectors | |
| Supported disk interfaces | |
| Chipset | |
| Number of SAS ports | |
| Host bus | |
| RAID protection | |
| Data transfer per port | |
| RAM type | |
| Card type | |
| Cache size | |
| RAM clock frequency |
